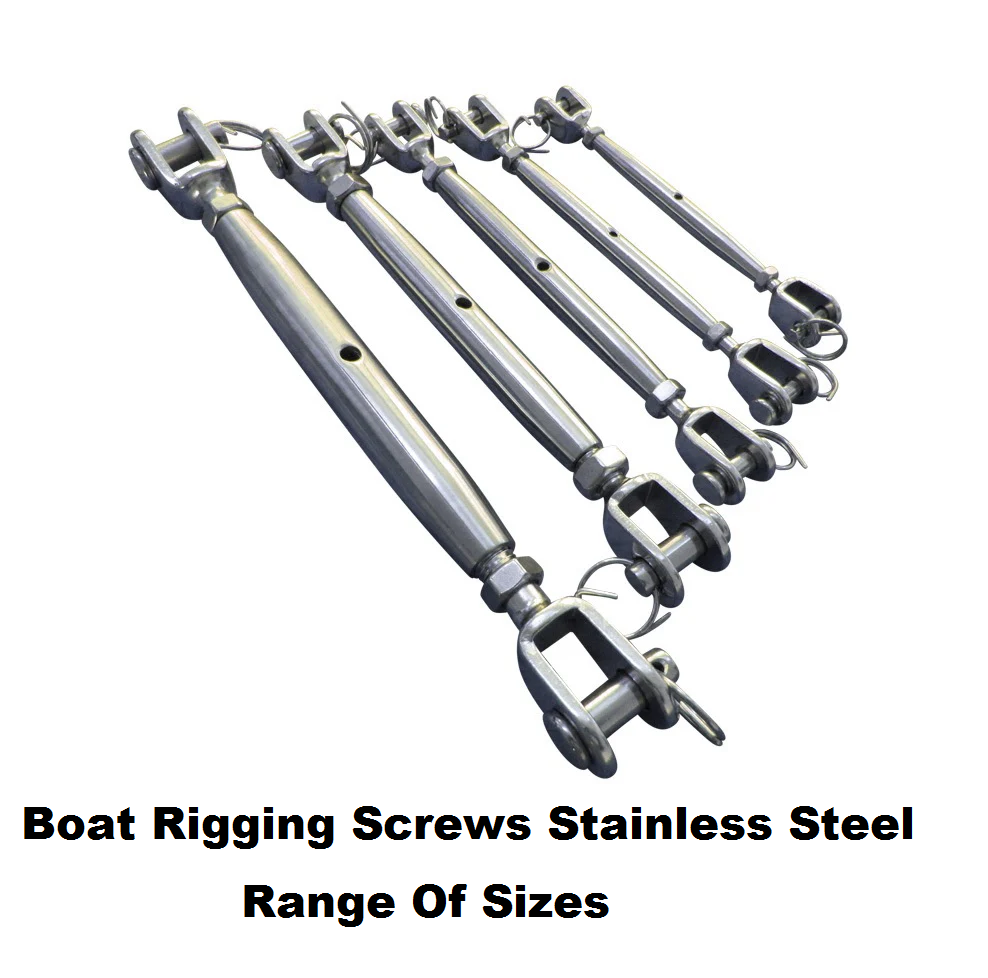

Stainless steel turnbuckles / rigging screws, manufactured from 316 (marine-grade) stainless. Complete with fork-ends and clevis pins, these turnbuckles are used for tensioning wire ropes. At each end of the turnbuckle is a fork-end complete with clevis pin and ring-pin for securing.

The turnbuckle consists of a central bottle screw with a right hand thread and one end, and a left-hand thread at the other. At each end of the turnbuckle is a threaded fork end with clevis pin.

Our turnbuckles come in a range of sizes. When you select a size you will see a table of dimensions including the fully closed and fully open lengths between pins.

TURNBUCKLE STRENGTH INFORMATION

The manufacutrer's stated breaking loads for each size of turnbuckle are shown below. These are for ideal straight-line loading.

• M4 size: breaking load 480kg
• M5 size: breaking load 790kg
• M6 size: breaking load 1100kg
• M8 size: breaking load 1750kg
• M10 size: breaking load 3100kg
• M12 size: breaking load 4570kg
